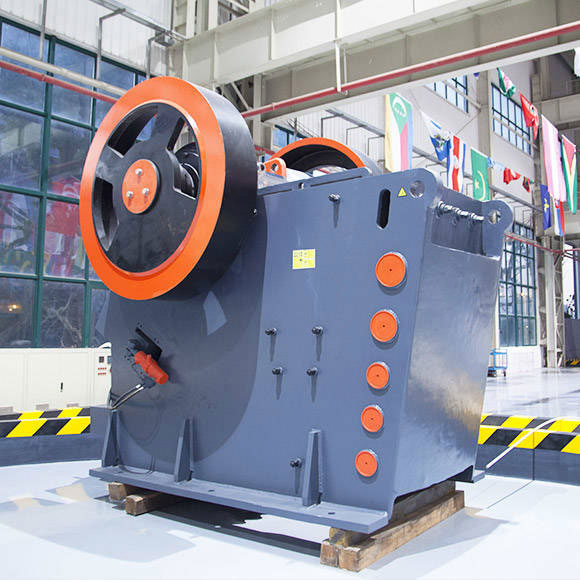

The PEW Series Jaw Crusher from SKD represents a new generation of high-efficiency primary crushing equipment, engineered to deliver superior performance in demanding mining, quarrying, and aggregate production environments. Built upon decades of research and development, the PEW series combines advanced design, durable materials, and intelligent manufacturing to set a new benchmark in jaw crushing technology.
Key Features of PEW Series Jaw Crusher:
-
Robust and Reliable Structure:
The PEW jaw crusher features a fully welded frame structure made from high-strength cast steel, ensuring exceptional durability, stability, and resistance to tough operating conditions. -
Optimized Crushing Cavity:
Designed with a V-type crushing cavity and large stroke motion, the machine improves material throughput and enhances crushing efficiency, resulting in higher productivity and better reduction ratios. -
Hydraulic Control System:
Equipped with a hydraulic wedge adjustment system, the PEW allows for fast, safe, and precise setting changes, significantly reducing downtime and improving operational control. -
Heavy-Duty Bearings and Eccentric Shaft:
High-quality, oversized bearings and a stronger eccentric shaft enhance load capacity and ensure long-term reliability, even under high-impact loads. -
Energy-Efficient Performance:
With advanced crushing dynamics and reduced power consumption, the PEW jaw crusher delivers outstanding energy efficiency, helping users reduce operational costs and environmental impact.
Applications:
The PEW Jaw Crusher is ideal for:
-
Hard rock and ore crushing (e.g., granite, basalt, iron ore, copper ore)
-
Primary crushing in mining and quarrying operations
-
Aggregate production for construction and infrastructure projects
-
Road and bridge construction
Technical Highlights:
-
Feed size: up to 1200 mm
-
Capacity: up to 1500 tons per hour
-
Motor power: tailored to model and capacity
-
Discharge adjustment: hydraulic wedge system
Specifications – Technical Data
| Model | Feed opening (mm) |
Maximum feed size(mm) |
CSS min-max (mm) |
Capacity (tph) |
Power KW(HP) |
Dimension (L×W×H) (mm) |
Weight (t) |
| PEW200×1300 | 200X1300 | 150 | 10-30 | 12-35 | 30(40) | 1320X2150X1176 | 6 |
| PEW250×1000 | 250X1000 | 220 | 20-40 | 15-50 | 30(40) | 1400X1850X1310 | 6 |
| PEW250×1200 | 250X1200 | 220 | 20-40 | 20-50 | 37(50) | 1450X2150X1175 | 7 |
| PEW400×600 | 400X600 | 350 | 35-85 | 15-70 | 37(50) | 1920X1460X1840 | 7.5 |
| PEW760 | 760X1100 | 620 | 75-200 | 150-350 | 110(150) | 2950X2360X2760 | 24 |
| PEW860 | 840X1100 | 720 | 100-225 | 200-500 | 132(175) | 3300X2320X3120 | 32 |
| PEW1100 | 1100X1200 | 940 | 150-275 | 300-650 | 185(250) | 4140X2660X3560 | 59.2 |
Notice:
1. Any change of European Type Jaw Crusher technical data shall not be advised additionally.
2. The Model PEW860 and PEW1100 with lubrication station and hydraulic adjustment station.
