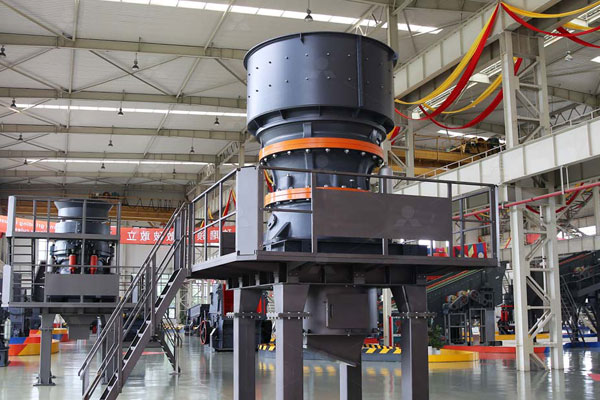

The HST Hydraulic Cone Crusher from SKD represents a new generation of high-efficiency crushing equipment, engineered with precision and designed to meet the demands of modern mining, quarrying, and aggregate production. With its unique combination of advanced hydraulic technology, robust design, and intelligent control system, the HST series delivers superior performance in both coarse and fine crushing applications.
Key Features of HST Hydraulic Cone Crusher:
-
Single-Cylinder Hydraulic Design: The HST crusher adopts a single-cylinder hydraulic structure, simplifying operation and maintenance while ensuring greater stability and stronger crushing force.
-
Intelligent Control System: Equipped with advanced automation and control capabilities, the HST ensures consistent performance, overload protection, and real-time monitoring, reducing downtime and maximizing productivity.
-
Optimized Structure and Components: From a stronger main frame to high-efficiency crushing chambers, the HST is built for durability and precision, handling a wide range of materials from hard granite to metallic ores.
-
Excellent Particle Shape: Thanks to the lamination crushing principle and optimized chamber design, the HST produces uniform cubic-shaped aggregates ideal for construction and infrastructure projects.
-
Flexible Applications: Whether used in mining, building materials, metallurgy, or chemical industries, the HST adapts easily to stationary or mobile crushing operations.
Advantages:
-
High crushing efficiency with low energy consumption
-
Excellent particle shape and high-quality output
-
Reliable performance with advanced automation
-
Reduced operating and maintenance costs
Typical Applications:
-
Hard rock and ore crushing (e.g., granite, basalt, iron ore, copper ore)
-
Fine crushing in mineral processing and aggregate production
-
Secondary, tertiary, or even quaternary crushing stages
Specifications – Technical Data
| Model | Cavity | Maximum feed(mm) | Min CSS(mm) | Capacity(t/h) | Power(kw) |
|---|---|---|---|---|---|
| HST100 | S1(Extra Coarse) | 240 | 22 | 85-170 | 90 |
| H1(Fine) | 135 | 10 | 45-115 | ||
| H2(Medium Fine) | 65 | 8 | 35-80 | ||
| H3(Extra Fine) | 35 | 4 | 27-60 | ||
| HST160 | S1(Extra Coarse) | 360 | 25 | 120-345 | 160 |
| S2(Medium Coarse) | 300 | 22 | 105-305 | ||
| S3(Coarse) | 235 | 19 | 90-275 | ||
| H1(Fine) | 185 | 13 | 66-210 | ||
| H2(Medium Fine) | 90 | 10 | 65-165 | ||
| H3(Extra Fine) | 50 | 6 | 48-105 | ||
| HST250 | S1(Extra Coarse) | 450 | 35 | 255-605 | 250 |
| S2(Medium Coarse) | 400 | 29 | 215-515 | ||
| S3(Coarse) | 300 | 25 | 190-490 | ||
| H1(Fine) | 215 | 16 | 110-395 | ||
| H2(Medium Fine) | 110 | 13 | 115-340 | ||
| H3(Extra Fine) | 70 | 8 | 90-255 | ||
| HST315 | S1(Extra Coarse) | 560 | 41 | 335-1050 | 315 |
| S2(Medium Coarse) | 500 | 38 | 305-895 | ||
| 275 | 16 | 170-665 | |||
| H2(Medium Fine) | 135 | 16 | 190-505 | ||
| H3(Extra Fine) | 65 | 13 | 205-320 | ||
| HST450 | S1(Extra Coarse) | 560 | 54 | 500-1300 | 450 |
| S2(Medium Coarse) | 465 | 51 | 450-1200 | ||
| HST560 | H1(Fine) | 300 | 22 | 430-1515 | 560 |
| H2(Medium Fine) | 155 | 19 | 380-1375 | ||
| H3(Extra Fine) | 80 | 10 | 270-775 | ||
| HST750 | H1(Fine) | 370 | 25 | 460-2130 | 750 |
| H2(Medium Fine) | 195 | 22 | 525-1605 | ||
| H3(Extra Fine) | 85 | 10 | 350-885 |
