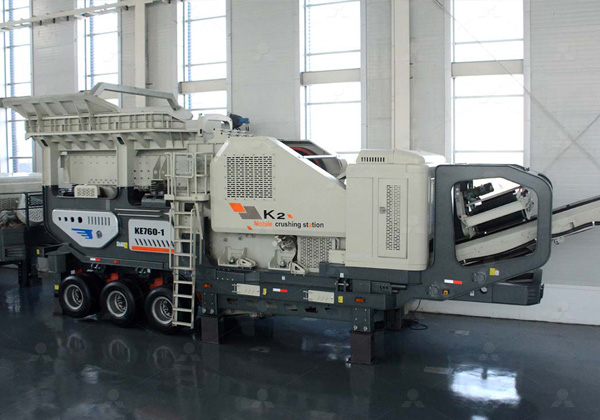

SKD’s Mobile Primary Jaw Crusher is a cutting-edge crushing machine designed for high-performance primary crushing applications in mining, quarrying, and construction. Combining robust engineering with exceptional mobility, this crusher ensures optimal productivity and flexibility for various materials, including hard rock, recycled concrete, and ore.
Key Features of Mobile Primary Jaw Crusher:
-
Heavy-Duty Jaw Crusher: Equipped with a high-capacity jaw crusher (PE series or European type), it delivers large feed opening and high crushing efficiency, capable of processing hard stones such as granite, basalt, iron ore, and concrete.
-
Mobile Flexibility: Mounted on a wheel chassis, the unit can be easily transported and quickly set up on-site, minimizing downtime and reducing the need for infrastructure.
-
Strong Structure & Durability: The frame is built from premium-grade steel, ensuring long service life and resistance to impact and vibration.
-
Efficient Crushing System: The optimized crushing chamber and deep cavity design enhance material throughput and reduce wear, ensuring consistent output and low operating cost.
-
Integrated System: Includes a vibrating feeder for consistent material flow, a jaw crusher for powerful primary crushing, and a belt conveyor for smooth material discharge — all in one unit.
- Custom Configurations: Available in different models and configurations to suit specific capacity and application needs, ranging from 100 to 500 TPH.
Technical Highlights:
-
Output capacity: 100–500 tons per hour (depending on model and material)
- Feed size: Up to 930 mm
-
Output Size: Adjustable based on application
- Discharge belt and vibrating feeder included
Why Choose Our Mobile Primary Jaw Crusher?
- Higher Efficiency: Reduces material handling costs with direct on-site crushing.
- Lower Transportation Costs: Eliminates the need to haul materials to a stationary crusher.
- Quick Setup & Easy Maintenance: Designed for fast deployment and hassle-free servicing.
Specifications – Technical Data
| Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
| Model | Model | Max. Feeding Size(mm) | output (t/h) |
Transport dimension (need tear-down) | |||
| KE600-1 | TSW0936 | PE600×900Ⅱ | 500 | 90-180 | 100-210 | 12150×2600×3950(mm) | 43 |
| KE750-1 | TSW1139 | PE750×1060 | 630 | 110-300 | 130-330 | 13000×2850×4400mm | 61 |
| KE760-1 | TSW1139 | PEW760 | 640 | 150-310 | 170-330 | 13000×2800×4200(mm) | 55 |
| KE860-1 | TSW1345 | PEW860 | 720 | 200-420 | 230-450 | 14600×3000×4500(mm) | 64 |
| KE1100-1 | TSW1548 | PEW1100 | 930 | 300-600 | 350-650 | 14050×2900×4000(mm) | 96 |
| KF1214Ⅱ-1 | TSW0936 | PFW1214Ⅱ | 500 | 110-190 | 120-210 | 12150×2600×3980(mm) | 48 |
| KF1214Ⅱ-1 | TSW1139 | PFW1214Ⅱ | 500 | 110-190 | 140-230 | 13000×2800×4200(mm) | 53 |
| KF1315Ⅱ-1 | TSW1345 | PFW1315Ⅱ | 600 | 180-280 | 190-310 | 14600×3100×4500(mm) | 61 |
| KF1415Ⅱ-1 | TSW1548 | PFW1415Ⅱ | 700 | 280-450 | 310-480 | 14050×3000×4000(mm) | 74 |
