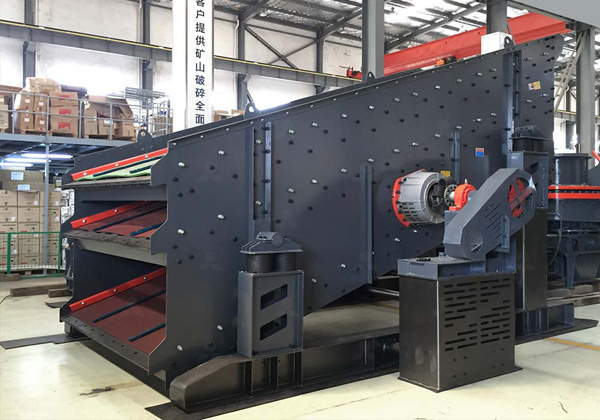

The S5X Series Vibrating Screen from SKD is a high-efficiency screening equipment designed to meet the most demanding aggregate and mining applications. Engineered for superior durability, precision, and performance, the S5X series adopts advanced international technology and combines years of field experience to deliver industry-leading reliability and screening capacity.
Key Features of S5X Series Vibrating Screen:
-
Modular Design: The screen uses a modular design that allows for quick assembly and easy maintenance, minimizing downtime and enhancing operational efficiency.
-
High Vibrational Strength: Equipped with an advanced vibrator and an adjustable amplitude system, the S5X provides strong vibration to ensure high throughput and excellent screening precision.
-
Efficient Screening: The elliptical vibration trajectory ensures better material stratification and a higher screening efficiency, especially effective for fine and moist materials.
-
Flexible Configuration: Available in 2 to 4 layers with a wide range of screen meshes to meet various application requirements, from fine sand to large aggregates.
-
Multiple Applications: Ideal for materials like limestone, granite, basalt, iron ore, coal, and construction waste, the S5X Series can be widely used in mining, quarrying, construction, and recycling industries.
Advantages:
-
Large Capacity & High Screening Efficiency
-
Robust Structure with Long Service Life
-
High precision and reliability in material separation
-
Customizable Deck Configurations
Specifications – Technical Data
| Model | Size W×L (mm) |
Number of decks |
Incline (°) |
Mesh Size (mm) |
Max input size (mm) |
Oper.Speed (RPM) |
Double amplitude (mm) |
Capacity (t/h) |
Power (kW) |
| S5X1545-2 | 1500×4500 | 2 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 45-380 | 11 |
| S5X1545-3 | 1500×4500 | 3 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 45-380 | 15 |
| S5X1845-2 | 1800×4500 | 2 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 60-450 | 15 |
| S5X1845-3 | 1800×4500 | 3 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 60-450 | 22 |
| S5X1860-2 | 1800×6000 | 2 | 18(18-25) | 2-70 | 200 | 800-900 | 7-10 | 75-600 | 15 |
| S5X1860-3 | 1800×6000 | 3 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 75-600 | 30 |
| S5X1860-4 | 1800×6000 | 4 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 75-600 | 37 |
| S5X2160-2 | 2100×6000 | 2 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 85-700 | 22 |
| S5X2160-3 | 2100×6000 | 3 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 85-700 | 30 |
| S5X2160-4 | 2100×6000 | 4 | 18(18-25) | 2-70 | 200 | 800-900 | 7-11 | 85-700 | 37 |
| S5X2460-2 | 2400×6000 | 2 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 100-800 | 22 |
| S5X2460-3 | 2400×6000 | 3 | 18(18-25) | 2-70 | 200 | 800-900 | 7-11 | 100-800 | 30 |
| S5X2460-4 | 2400×6000 | 4 | 18(18-25) | 2-70 | 200 | 800-900 | 7-10 | 100-800 | 37 |
| S5X2760-2 | 2700×6000 | 2 | 18(18-25) | 2-70 | 200 | 800-900 | 7-12 | 120-900 | 30 |
| S5X2760-3 | 2700×6000 | 3 | 18(18-25) | 2-70 | 200 | 800-900 | 7-11 | 120-900 | 37 |
| S5X3072-2 | 3000×7200 | 2 | 20(20-25) | 2-70 | 200 | 800-900 | 7-11 | 150-1200 | 37 |
| S5X3075-2T | 3000×7200 | 2 | 20(20-25) | 2-150 | 300 | 800-900 | 7-12 | 180-1800 | 22×2 |
| S5X3075-3T | 3000×7200 | 3 | 20(20-25) | 2-150 | 300 | 800-900 | 7-12 | 180-1800 | 30×2 |
| S5X3680-2T | 3600×7500 | 2 | 21(20-25) | 2-150 | 300 | 800-900 | 7-12 | 225-2250 | 30×2 |
| S5X3680-3T | 3600×7500 | 3 | 20(20-25) | 2-150 | 300 | 800-900 | 7-12 | 225-2250 | 37×2 |
Note:
1, No standard vibrating screen with only one decks.
2, The processing amount listed in the table is based on the dry bulk density graded limestone 1.6t / m3 for a given amount of processing listed as a guide.
