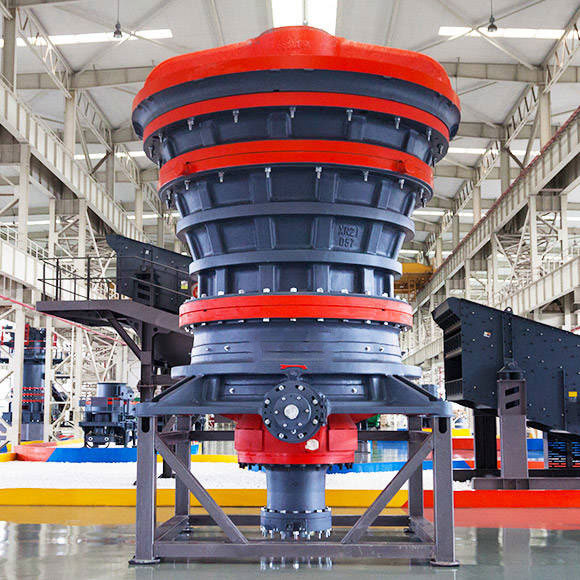

HGT Hydraulic Gyratory Crusher

The HGT Hydraulic Gyratory Crusher from SKD is a high-performance primary crusher engineered for large-scale mining and quarrying operations. Built with cutting-edge technology and robust design, the HGT series delivers superior crushing efficiency, high capacity, and outstanding durability under the toughest working conditions.

Key Features of HGT Hydraulic Gyratory Crusher:

• Intelligent Control System
  Equipped with an automatic control system, the HGT gyratory crusher enables real-time monitoring of operating parameters such as the spindle position, hydraulic pressure, and oil temperature, ensuring safe and stable operation.

• Large Throughput Capacity
  With its deep crushing chamber and optimized design, the HGT crusher can handle feed sizes up to 1350mm and process high volumes of material, making it ideal for primary crushing of hard and abrasive ores like granite, basalt, iron ore, and copper ore.

• Hydraulic Adjustment and Overload Protection
  The hydraulic system allows easy and precise adjustment of the discharge setting. In case of uncrushable material, the hydraulic cylinder automatically releases pressure to protect the crusher from damage.

• Robust Construction
  Featuring a heavy-duty one-piece main shaft and reinforced frame structure, the HGT crusher ensures long service life and reliable performance even under continuous heavy loads.

• Low Maintenance and Operation Cost
  Advanced lubrication and cooling systems minimize wear and tear, reducing maintenance frequency and downtime.

Applications:

The HGT Hydraulic Gyratory Crusher is widely used in:

• Large-scale open-pit mining

• Aggregate and quarrying plants

• Metal ore processing

• Cement and infrastructure projects

Technical Highlights:

• Feed size: Up to 1350 mm

• Capacity: 2015–8895 t/h (depending on model and material)

• Discharge range: 140–250 mm

Specifications – Technical Data
